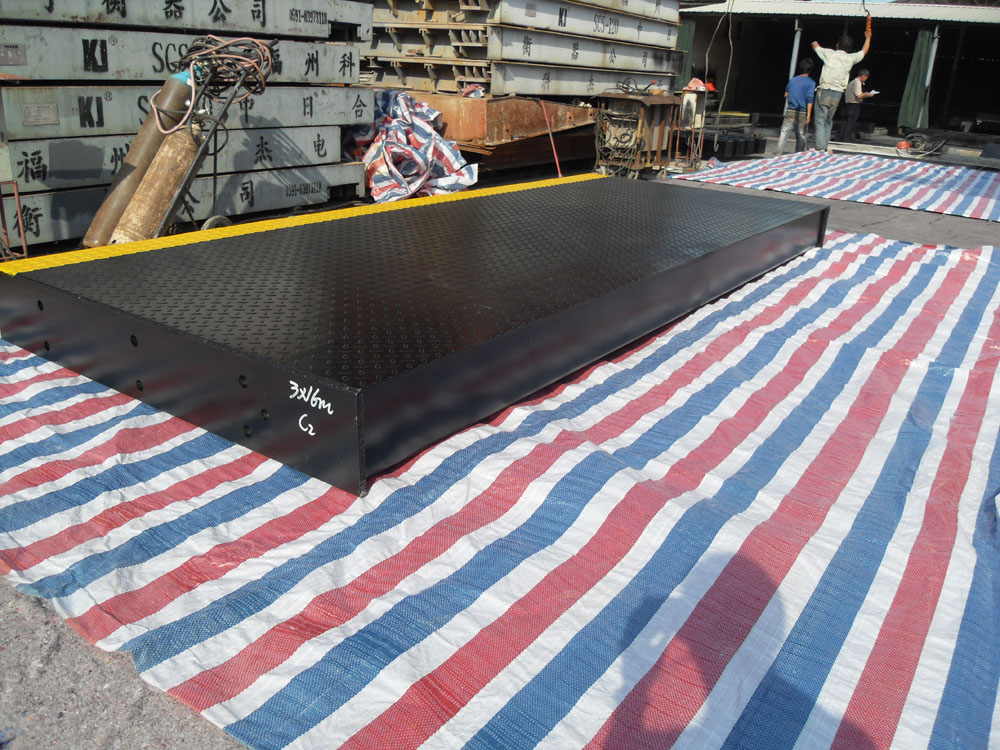

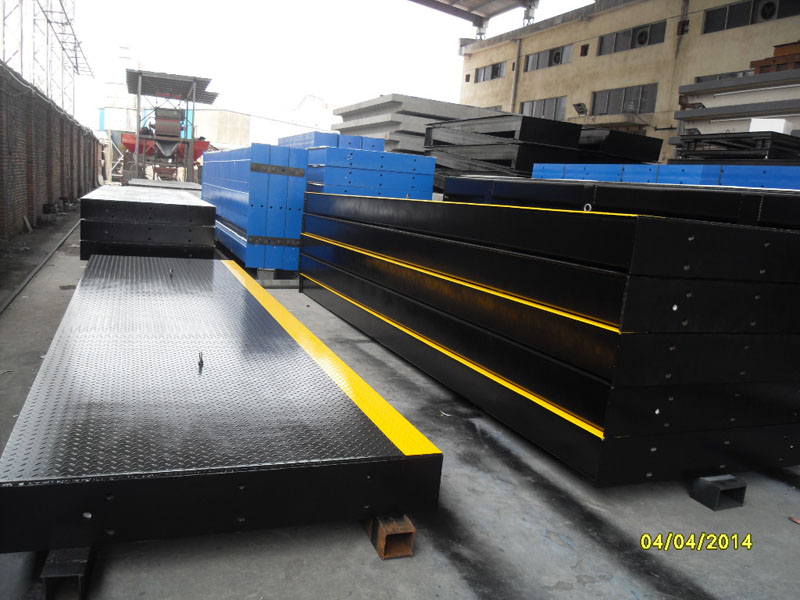

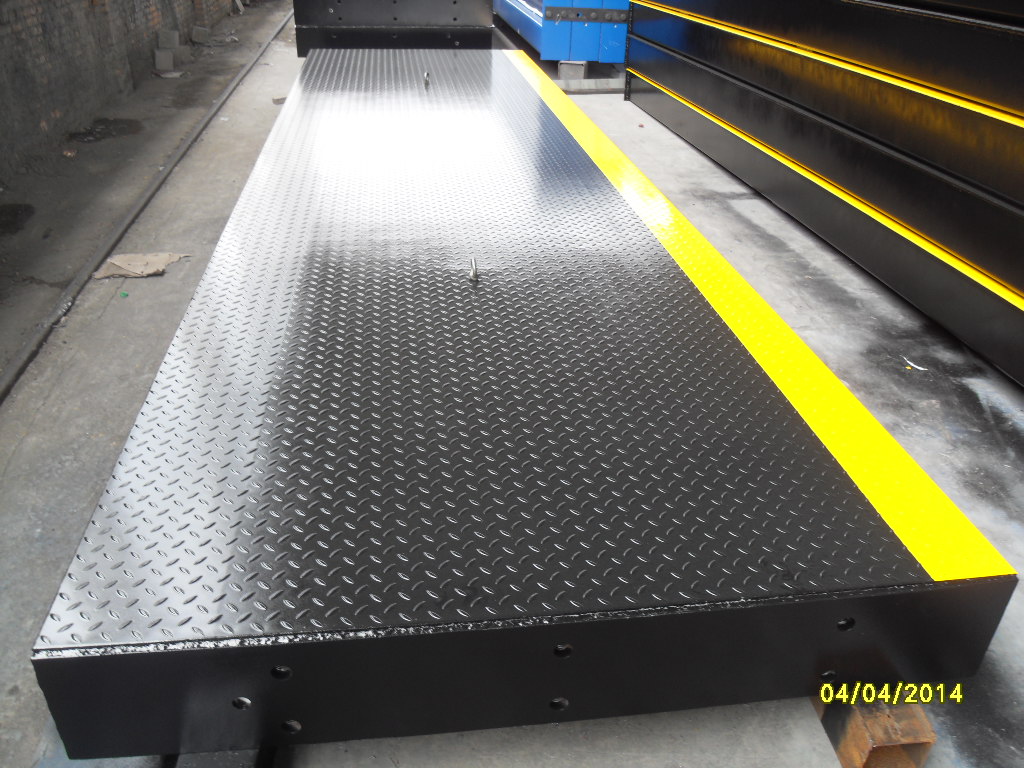

Steel Modular Truck Scale
Steel Modular Truck Scale
2. Suitable for container transportation of various specifications.
Specification | Description |
Standard lengths | 6m;8m;9m;10m;12m;14m;16m;18m;20m;22m;24m |
Standard widths | 3m;3.4m |
Standard capacity | 30t,40t,50t,60t,80t,100t,120t |
Custom sizes | Call us for more information on your custom application. |
Deck surface | Mild Steel |
Thickness of Deck surface | 8+2mm or 10+2mm checker plate or 10mm/12mm/14mm plain plate |
U beam quantity | 8pcs |
Paint specification | 2 Base coats, 1 zinc epoxy, 1 surface protection coat |
Weighbridge structure Warranty | 2-Years |
Indicator Brand | KELI,YAOHUA etc |
Indicator Model | XK3118K5,D2008H,XK3190-A12,XK3190-A9,XK3190-DS1 |
Load cell Brand | KELI ,ZEMIC etc |
Load cell Model | HM9B-30T/BM14G-30T/QS-30T/ZSFY-ASS-30T |
Indicator and Load cell warranty | 1-Year |
Lighting protection | Earth spikes, clear line filter, tailbacks and loops with load cell input and output surge arrestors. |
Stainless steel junction box | Keli Stainless steel IP65 |
